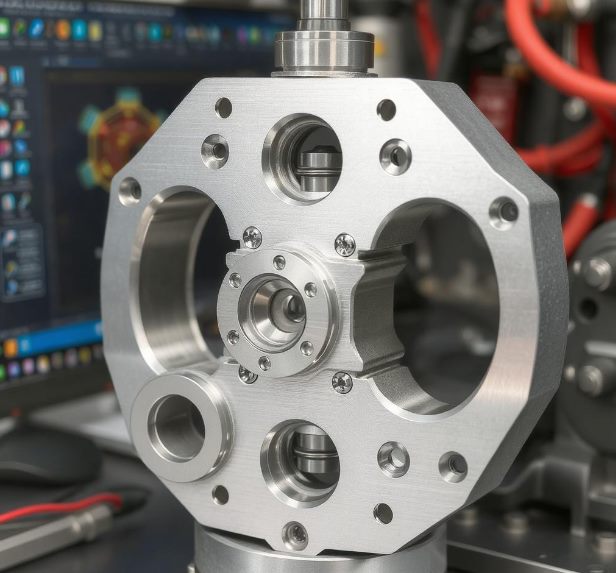

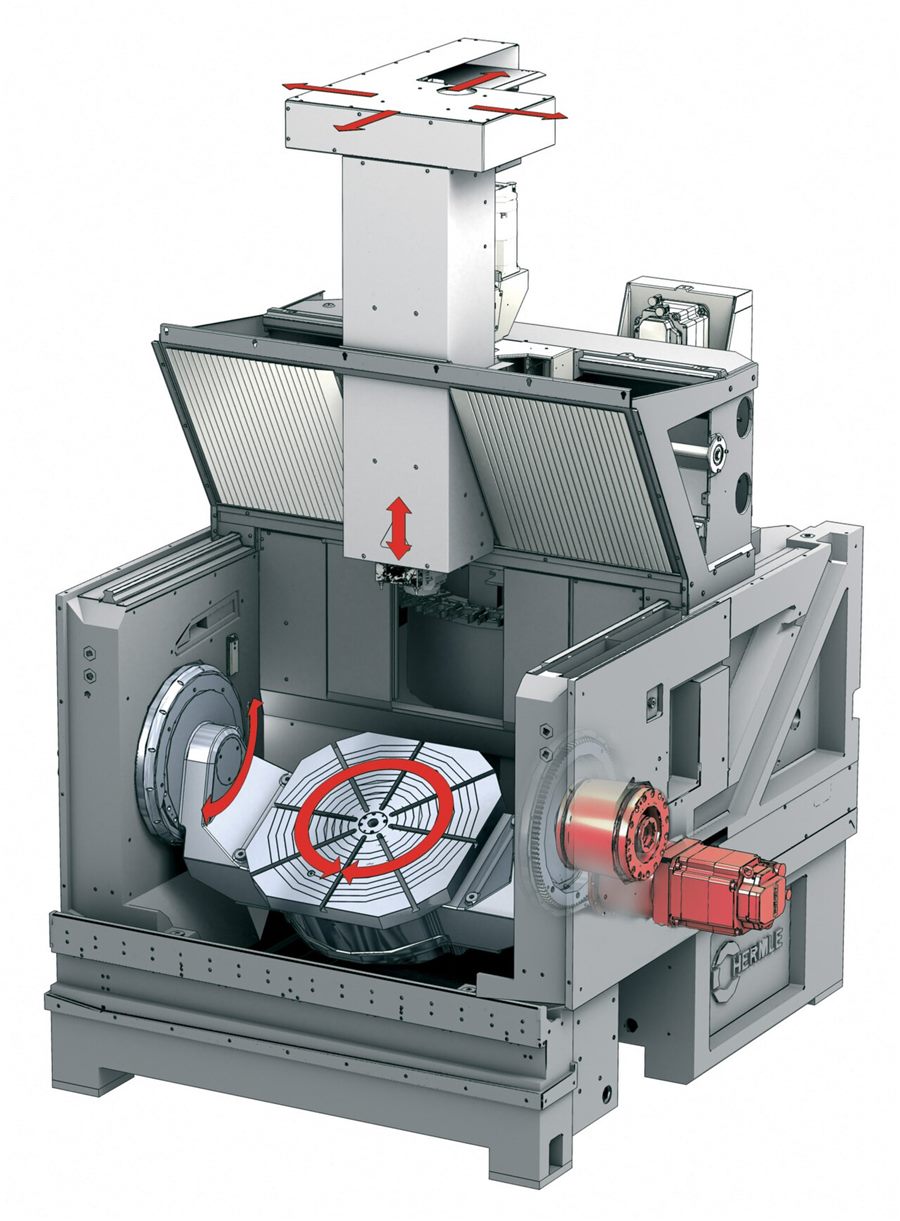

3-, 4- & 5-axis CNC milling
3-axis · 4-axis · 5-axis
Multi-face parts and complex profiles; 5-axis machining reduces setups and accumulated error.
CNC Machining
Build-to-print CNC machining coordinated through partner machine shops selected by material, complexity and volume – 3-, 4- and 5-axis milling, CNC turning and mechanical assembly, from prototypes to volume production. Duc Huy Intech is your single point of responsibility for specifications, schedule and quality.
Product range

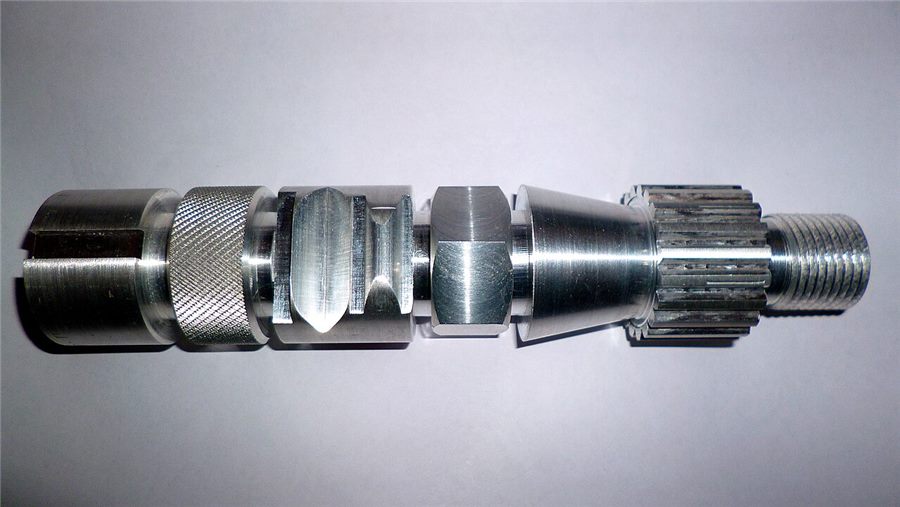

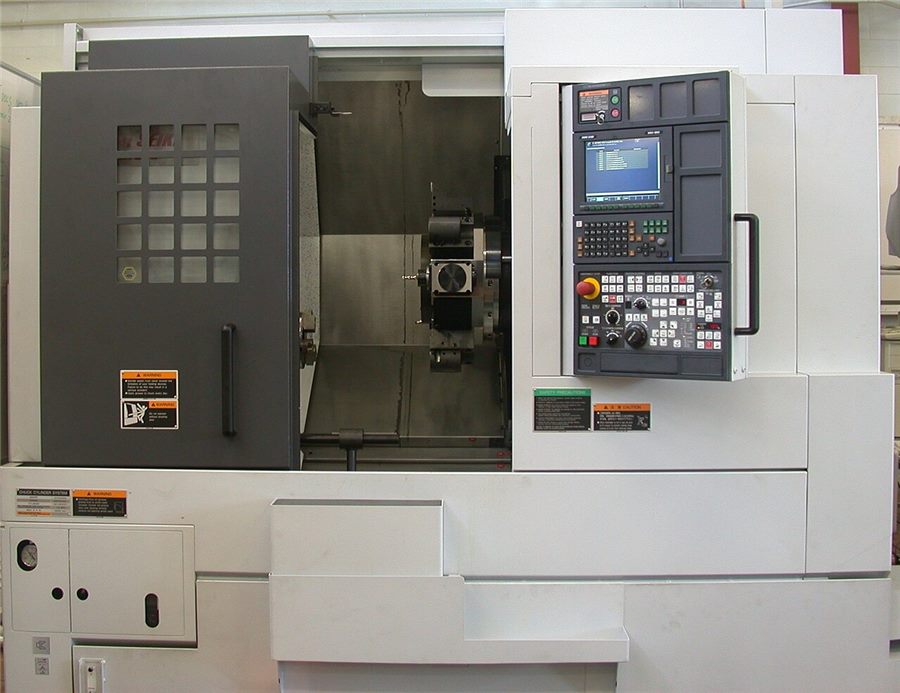

CNC turning & mill-turn
Ø · Shaft · Pin · Bushing
Shafts, pins, bushings, sleeves, threaded and round parts with milled features.

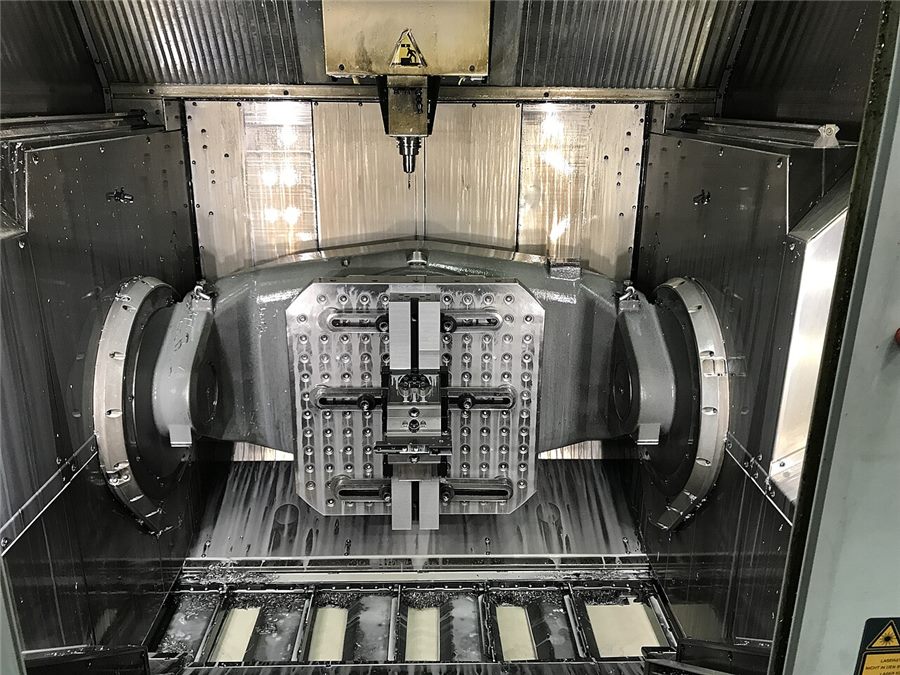

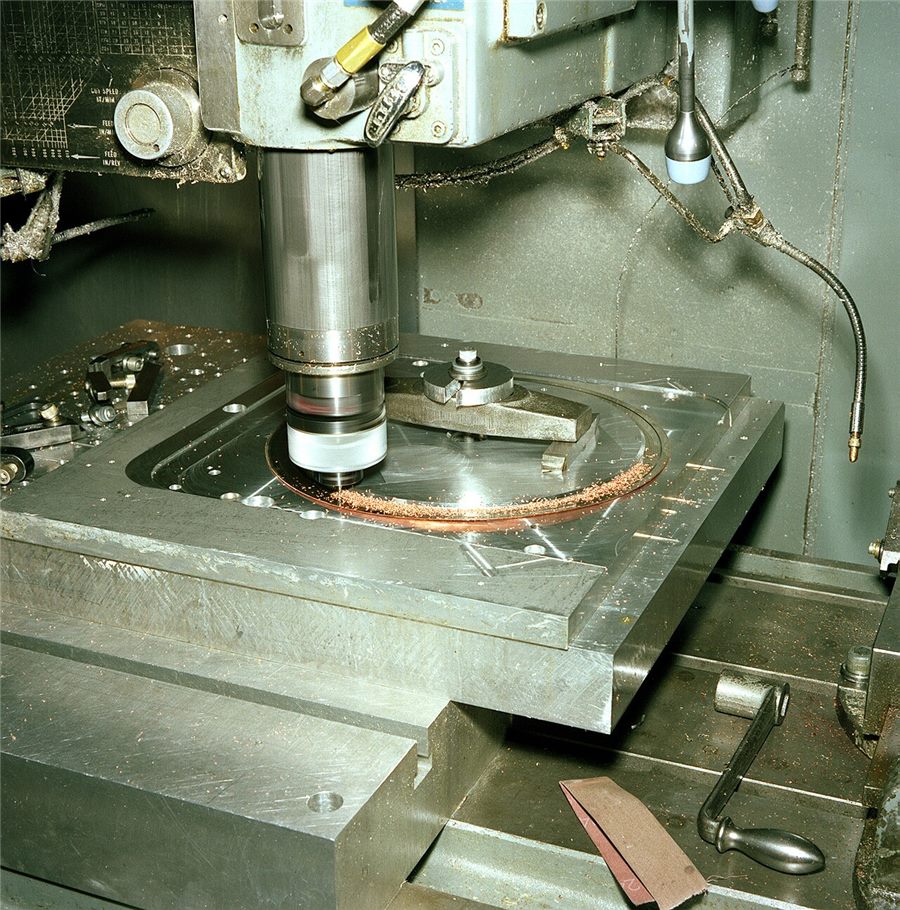

Jigs & automation fixtures
Jig · Fixture · Automation
Assembly and inspection fixtures; lightweight aluminium with plastic pads to protect part surfaces.

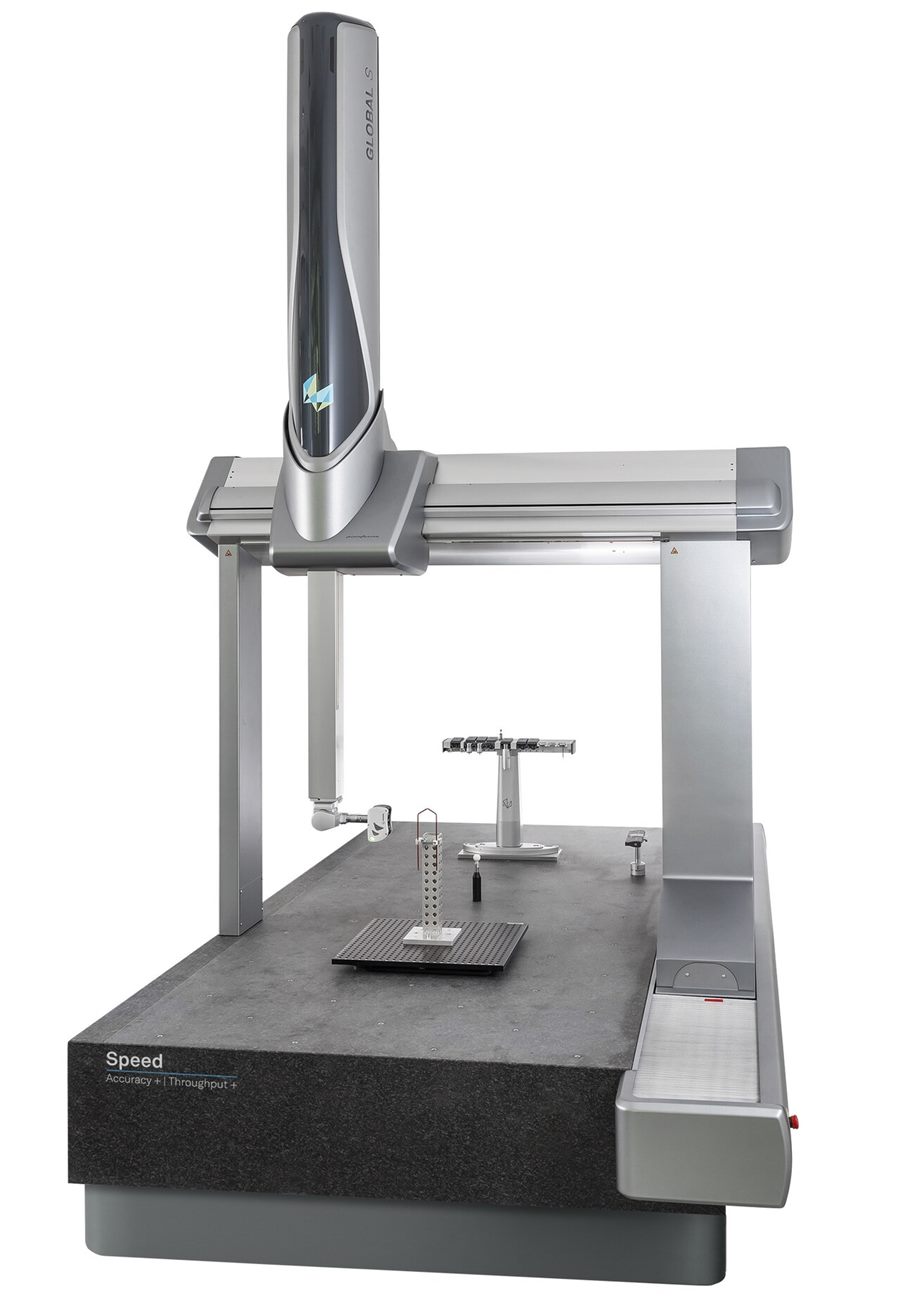

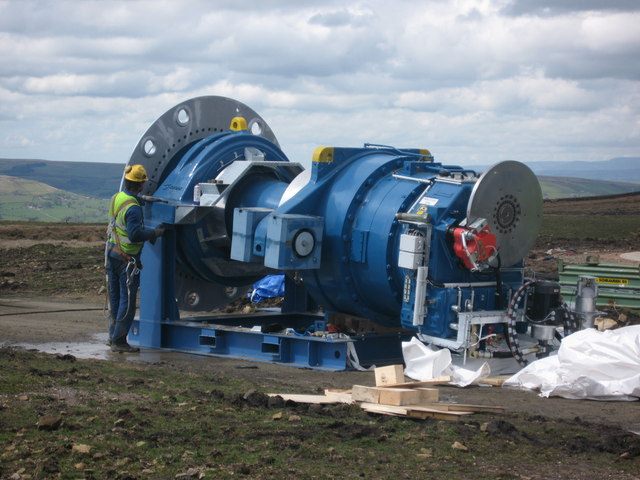

Mechanical sub-assembly
Sub-assembly
Machining of components and complete assembly of units to drawing, tested before delivery.

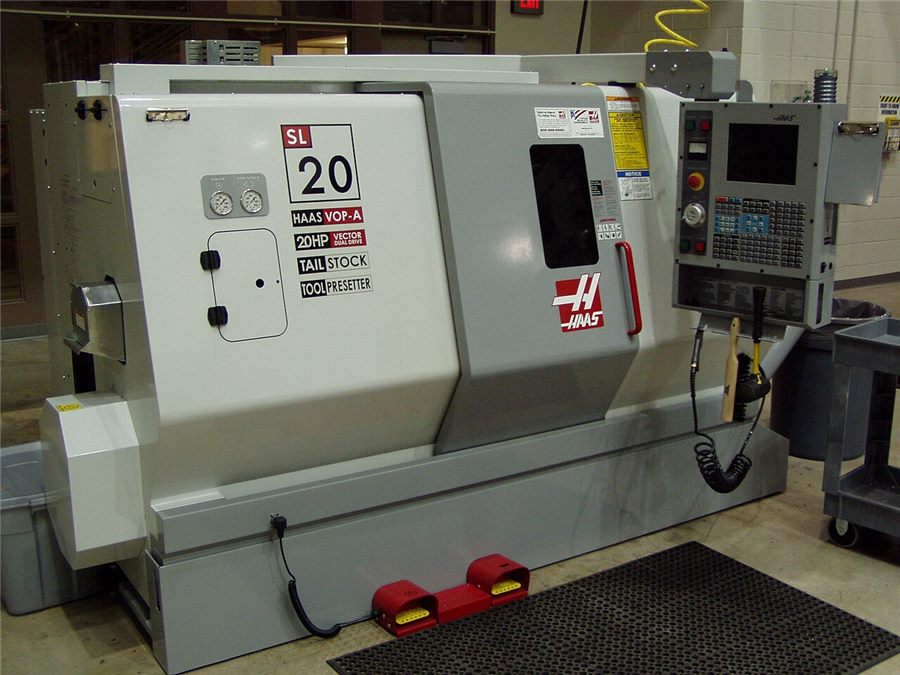

Engineering plastic parts
POM · PA · PE · Bakelite · PEEK
Gears, guides, insulating plates and wear parts in engineering plastics.

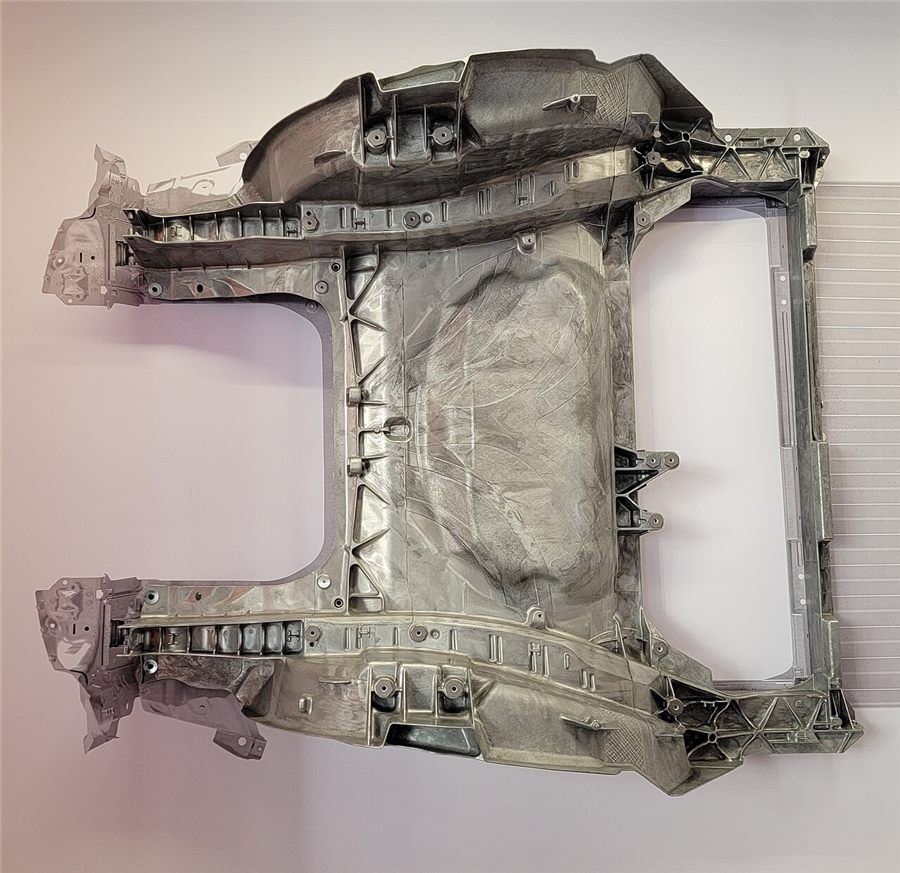

Castings with finish machining
Steel · Cast iron · Aluminium
Steel, cast iron and aluminium castings with mating surfaces finish-machined to drawing.
Machine photos illustrate the technology (source: Wikimedia Commons) and are not taken at our partner workshops.
Specifications & scope of supply
| Processes | 3- to 5-axis CNC milling, CNC turning, mill-turn, drilling, tapping, grinding, assembly (via partners) |
|---|---|
| Aluminium & steel | A5052, A6061, A7075, A2017 · SS400, S45C, S50C, SKD11, SKS3, NAK55, SCM440 |
| Stainless & copper alloys | SUS303, SUS304, SUS316, SUS440C · C3604, C1100, C17200 |
| Plastics, titanium & castings | POM, PA, PE, PVC, Bakelite, acrylic, urethane, PEEK · Titanium · Steel, iron and aluminium castings |
| Post-processing | Heat treatment (incl. vacuum), anodizing, zinc and nickel plating, black oxide |
| Volume & drawings | Prototypes, small lots to volume production · PDF, DWG, DXF, STEP, IGES |
| Inspection | Dimensional inspection to drawing; inspection reports on request |
Typical applications
- Semiconductor and high-tech equipment
- Medical equipment
- Automotive and motorcycles
- Food processing and packaging machines
- Textile and industrial machinery
- Fixtures for automated lines
Partner machine shop photo
Frequently asked questions
I only have a PDF drawing. Can you quote?
Yes. A PDF with full dimensions, tolerances and material is enough to quote. A 3D file (STEP) speeds up evaluation for complex parts.
Are our drawings kept confidential?
Drawings are used only for quoting and producing your order. We are ready to sign an NDA on request.
Do you accept small quantities?
Please send your request with the quantity. We will find a suitable machine shop and discuss the most cost-effective option.
